1. Combined Mould‑vibration & Table‑vibration, Dense Thick Solid Bricks & Less Defect Loss
Thick solid brick blanks easily suffer loose inner core, cracking and chipped corners caused by single‑source vibration, resulting in rejected products. QTJ4‑35B2 adopts combined mould‑box and table vibration with 2800 r/min high frequency and 40 KN exciting force, vibration penetrates thick brick blanks and fills mould cavities sufficiently. Finished solid bricks feature uniform density and intact sharp edges. Consistent compression strength and dimension across batches reduce waste caused by inner looseness, cracking and corner spalling. Bricks meet acceptance standards for residential and rural infrastructure projects. It helps you secure steady solid‑brick supply contracts and avoid financial loss from defective returns, protecting local and overseas customer reputation.
2. 18 Pcs Per Mould High‑efficiency Output for Medium‑bulk Solid Brick Orders

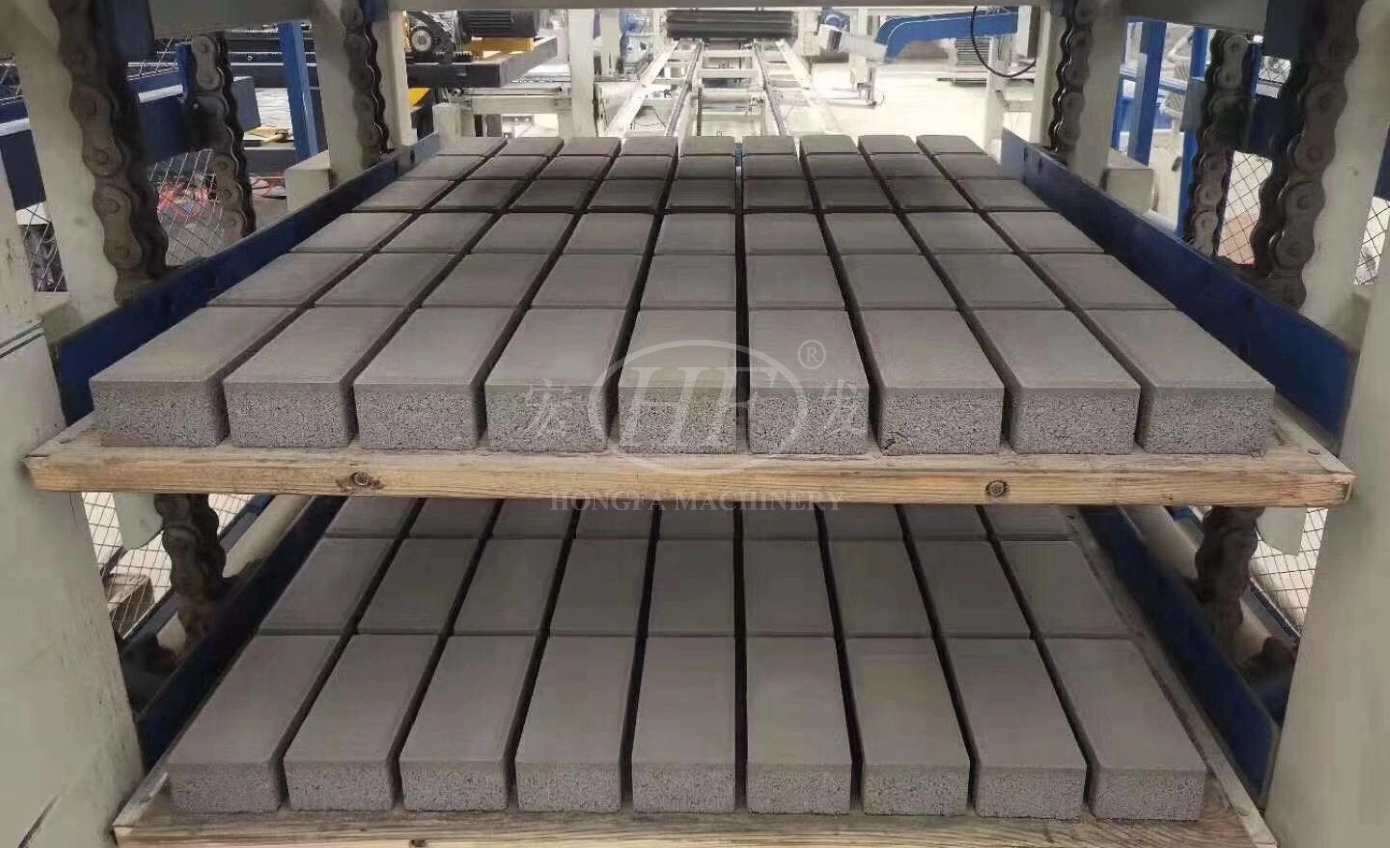

Optimized for 240×115×53 standard solid bricks, producing 18 bricks per mould with stable 35‑second cycle. Output reaches 14811 solid bricks for each 8‑hour shift, annual capacity up to 4.32 million standard bricks. Capacity perfectly matches real‑world order volume of small‑medium brick plants. It can run continuously for concentrated solid‑brick procurement orders from housing projects. Stable output guarantees on‑time delivery and avoids late‑shipment penalty, supporting long‑term cooperation with contractors and building‑material traders.

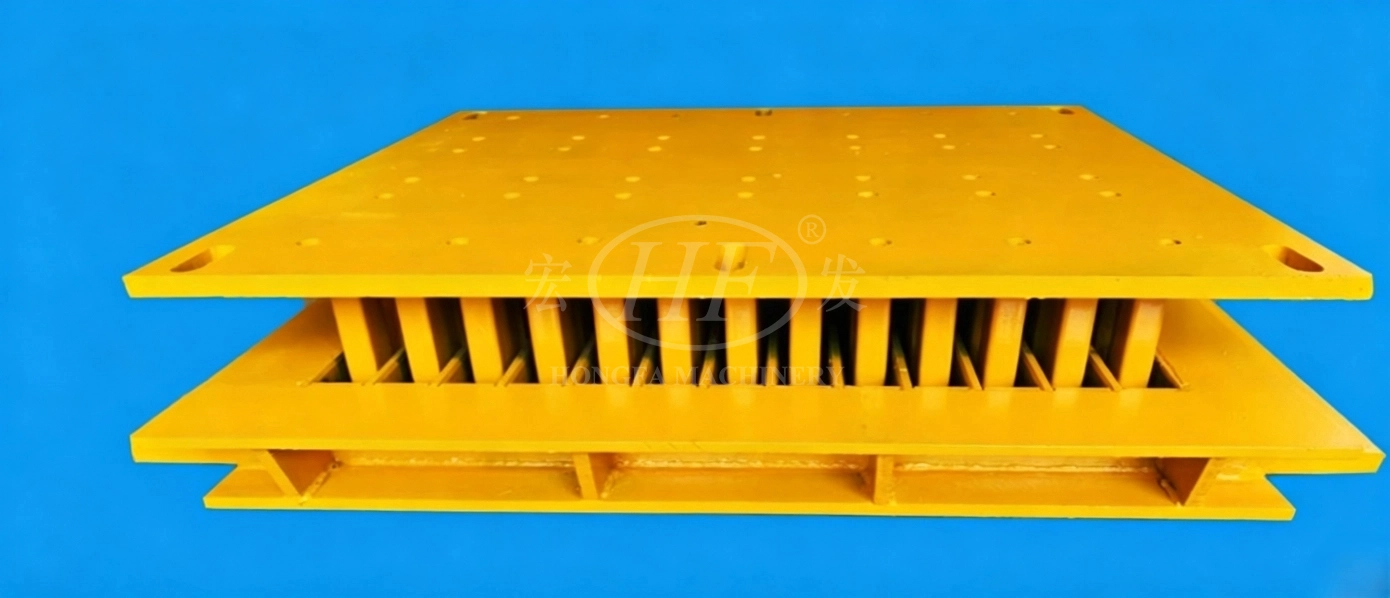

3. Quick‑change Mould & Adjustable Forming Height for Multiple Solid‑brick Sizes
Forming height adjustable from 50‑200 mm. Operators swap mould assemblies without major host disassembly. Besides standard 240×115×53 bricks, it can produce solid bricks of different thickness and dimensions. No need to invest in multiple forming machines. You can quickly switch production for custom‑size solid‑brick orders. Amortize equipment cost, improve machine utilization rate, reduce idle downtime and expand your solid‑brick order sources.
4. Broad Raw‑material Compatibility, Utilize Local Industrial Waste to Cut Raw‑material Expense
High‑grade river sand is not mandatory for solid‑brick manufacturing. Qualified solid bricks can be produced by mixing limited cement with quarry chips, fly ash, slag, coal gangue and other industrial residues. You can source affordable local industrial by‑products to cut long‑distance aggregate transportation cost. Stable production can be maintained even when premium sand becomes scarce or expensive. Lower comprehensive material cost brings bigger pricing flexibility, helping you win construction contracts or keep decent profit margin.
5. Flexible Pallet Options & Lean Manpower to Control Overall Production Cost
Compatible with wood, bamboo, PVC and GMT fiber pallets. GMT fiber pallets resist repeated wet‑dry cycles and extend service life to lower frequent pallet‑replacement cost. Only four operators handle full‑line workflow including feeding‑mixing, pallet loading, finished‑brick handling and brick‑pallet separation. Ordinary workers can operate after simple training without large skilled‑worker team. You can purchase pallets according to actual turnover demand to avoid excessive capital tie‑up on consumables, which is friendly for startup solid‑brick manufacturers.
6. Modular Turn‑key Line & Moderate Entry Barrier for Fast Solid‑brick Project Startup
The main unit can work independently or combine with JB400 concrete pan mixer and B600*6000 mm belt conveyor. Auxiliary equipment can be purchased step‑by‑step instead of one‑time full‑set investment. Ordinary hardened concrete floor is acceptable without complicated deep foundation work. Up‑front capital pressure is well controlled. Solid‑brick production can be launched quickly after installation and basic operator training, shortening the cycle from equipment purchase to profitable output for small‑size investors and home‑based brick workshops.
1. Combined Mould‑vibration & Table‑vibration, Dense Thick Solid Bricks & Less Defect Loss
Thick solid brick blanks easily suffer loose inner core, cracking and chipped corners caused by single‑source vibration, resulting in rejected products. QTJ4‑35B2 adopts combined mould‑box and table vibration with 2800 r/min high frequency and 40 KN exciting force, vibration penetrates thick brick blanks and fills mould cavities sufficiently. Finished solid bricks feature uniform density and intact sharp edges. Consistent compression strength and dimension across batches reduce waste caused by inner looseness, cracking and corner spalling. Bricks meet acceptance standards for residential and rural infrastructure projects. It helps you secure steady solid‑brick supply contracts and avoid financial loss from defective returns, protecting local and overseas customer reputation.
2. 18 Pcs Per Mould High‑efficiency Output for Medium‑bulk Solid Brick Orders
Optimized for 240×115×53 standard solid bricks, producing 18 bricks per mould with stable 35‑second cycle. Output reaches 14811 solid bricks for each 8‑hour shift, annual capacity up to 4.32 million standard bricks. Capacity perfectly matches real‑world order volume of small‑medium brick plants. It can run continuously for concentrated solid‑brick procurement orders from housing projects. Stable output guarantees on‑time delivery and avoids late‑shipment penalty, supporting long‑term cooperation with contractors and building‑material traders.
3. Quick‑change Mould & Adjustable Forming Height for Multiple Solid‑brick Sizes
Forming height adjustable from 50‑200 mm. Operators swap mould assemblies without major host disassembly. Besides standard 240×115×53 bricks, it can produce solid bricks of different thickness and dimensions. No need to invest in multiple forming machines. You can quickly switch production for custom‑size solid‑brick orders. Amortize equipment cost, improve machine utilization rate, reduce idle downtime and expand your solid‑brick order sources.
4. Broad Raw‑material Compatibility, Utilize Local Industrial Waste to Cut Raw‑material Expense
High‑grade river sand is not mandatory for solid‑brick manufacturing. Qualified solid bricks can be produced by mixing limited cement with quarry chips, fly ash, slag, coal gangue and other industrial residues. You can source affordable local industrial by‑products to cut long‑distance aggregate transportation cost. Stable production can be maintained even when premium sand becomes scarce or expensive. Lower comprehensive material cost brings bigger pricing flexibility, helping you win construction contracts or keep decent profit margin.
5. Flexible Pallet Options & Lean Manpower to Control Overall Production Cost
Compatible with wood, bamboo, PVC and GMT fiber pallets. GMT fiber pallets resist repeated wet‑dry cycles and extend service life to lower frequent pallet‑replacement cost. Only four operators handle full‑line workflow including feeding‑mixing, pallet loading, finished‑brick handling and brick‑pallet separation. Ordinary workers can operate after simple training without large skilled‑worker team. You can purchase pallets according to actual turnover demand to avoid excessive capital tie‑up on consumables, which is friendly for startup solid‑brick manufacturers.
6. Modular Turn‑key Line & Moderate Entry Barrier for Fast Solid‑brick Project Startup
The main unit can work independently or combine with JB400 concrete pan mixer and B600*6000 mm belt conveyor. Auxiliary equipment can be purchased step‑by‑step instead of one‑time full‑set investment. Ordinary hardened concrete floor is acceptable without complicated deep foundation work. Up‑front capital pressure is well controlled. Solid‑brick production can be launched quickly after installation and basic operator training, shortening the cycle from equipment purchase to profitable output for small‑size investors and home‑based brick workshops.
